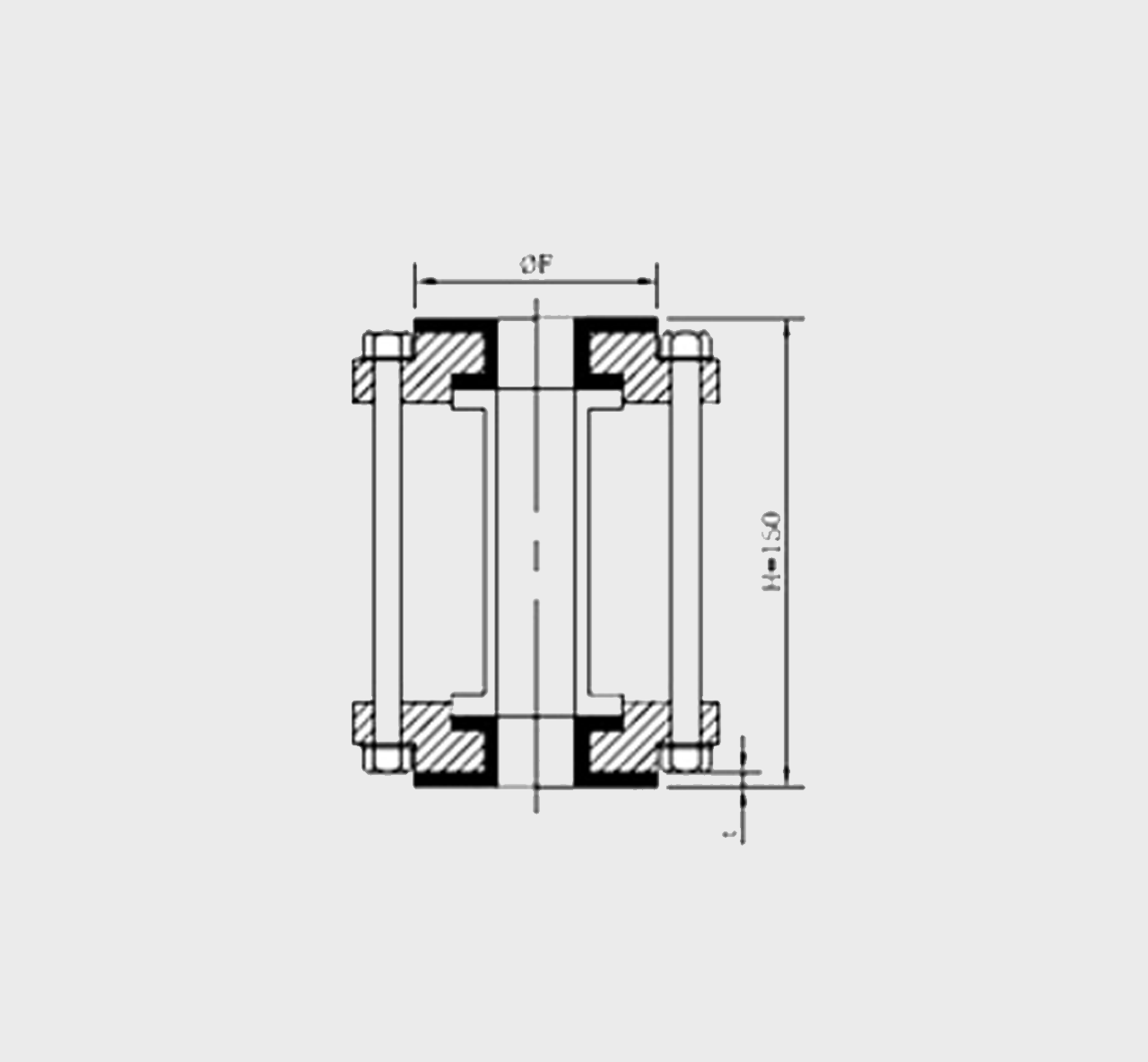

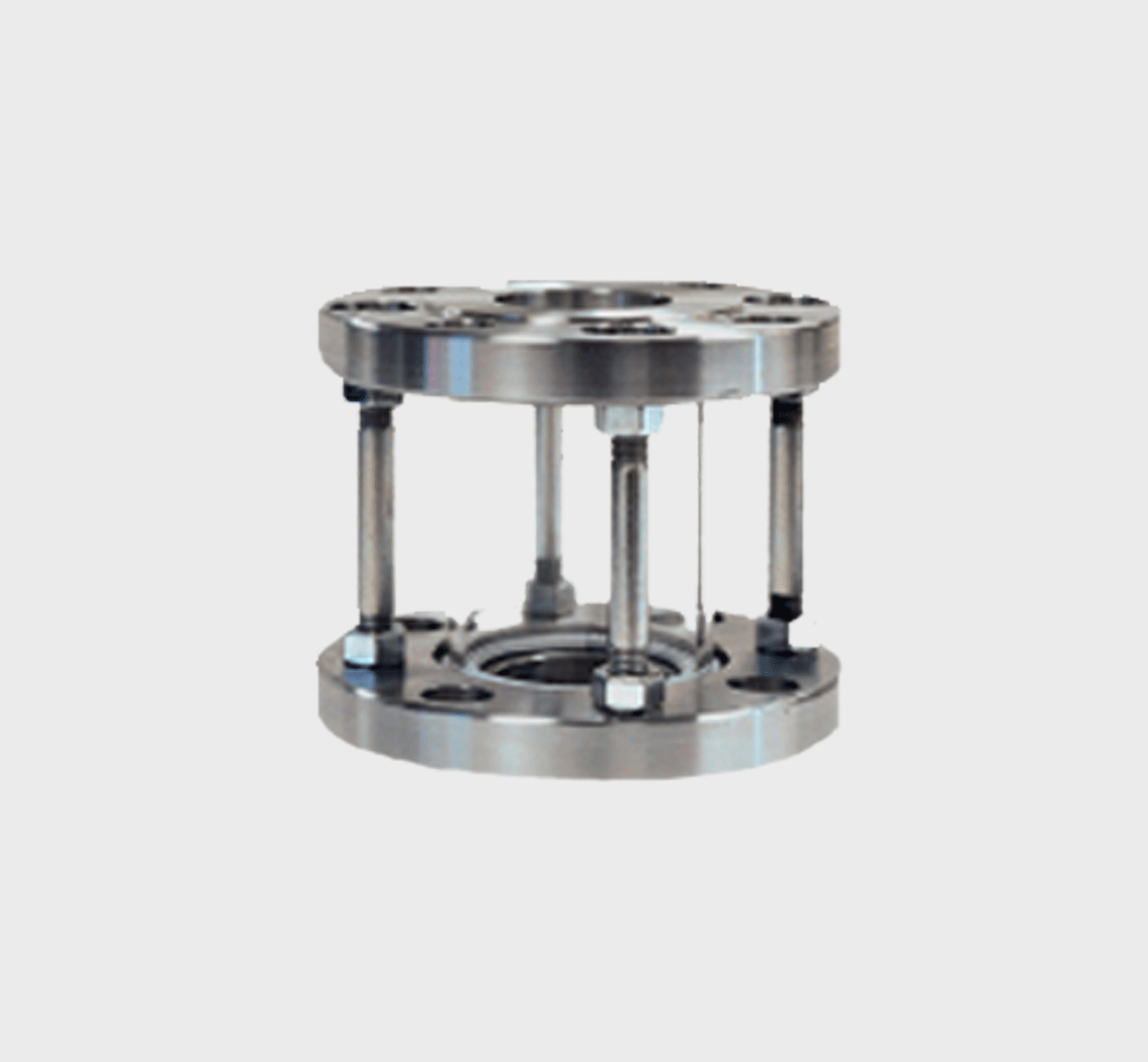

Full View Sight Glass Indicator

Sight Glass (Sight Flow Indicators) is used for monitoring flow in pipelines for a wide range of applications. Arctech manufacturing Sight Glass suitable for various rugged industrial applications. These Sight Flow Indicators are bi-directional type and easy to install in any orientation. Sight Glass (Sight Flow Indicators) provides a quick, reliable and economical way to verify the flow of liquids through industrial process pipelines. Arctech Enngineering Sight Glass has been designed with outstanding quality and the feature you need to streamline your operations. Full view types Sight Glass are widely used for corrosive chemicals, acids, and colored liquids. Sight Glass (Sight Flow Indicators) are generally used in processes, where spot required to detect the presence of media, or to visual inspect color, clarity, turbidity, or other critical characteristics. Sight Glass can be installed vertically or horizontally in the middle of any kind of non-transparent pipeline and are very convenient & easy to observe the flow from any direction

Features & Benefits :

  • Easy Maintenance
  • Lower Cost
  • Wide View Area to Inspect the Fluid
  • Borosilicate glass standard
  • Available in all most all M.O.C.
  • Design & Testing As Per Mfg. Standard
  • End Connections as per ANSI B 16.5/BS 10 Table/DIN/IS 6392 Std.

Applications :

  • Lactum Application in Chemical Process Pipe Line
  • Industrial Molten Sulfur / Sulphur Media
  • Fertilizer Industries
  • Organic Chemical Manufacturing Plant
  • Bitumen / Asphalt / Coal tar Pipe Line
  • Pharmaceutical Plant
  • Plasticisers and Resin Industries
